High Performance Concrete Laser Screed Machine (FDJP-24D)

  • High Performance Concrete Laser Screed Machine (FDJP-24D)
  • High Performance Concrete Laser Screed Machine (FDJP-24D)
  • High Performance Concrete Laser Screed Machine (FDJP-24D)
  • High Performance Concrete Laser Screed Machine (FDJP-24D)

High Performance Concrete Laser Screed Machine (FDJP-24D)

Product Description

Concrete Laser Screed Machine

Product Description



FDJP-24D 2.5m CE Certified High Performance Concrete Laser Screed Machine



Application: Concrete Laser Screed Machine

The laser screed is used in large area concrete construction, such as workshop, supermarket, warehouse, airport, and playground and so on. This laser screed machine can meet the construction requirement of high flatness and levelness for large area.Concrete Laser Screed

Concrete Laser Screed Machine

Concrete Laser Leveling Machine

Technical Parameter

Concrete Laser Screed Machine

Model FDJP-24D
Engine Model HONDA GX200 Electric Start Screed Width 2500mm
Type

4 Stoke, OHV, Single Cylinder

Gasoline Engine

Exciting Force 500N
Power 2.8kw Vibration Frequency 50Hz
Lubricant L 0.6L Screed Plate Level Control Electric Automatic Control
Fuel Consumption 300g/kwh Laser Control Type Microcomputer Laser Scan
Drive Reducer+Walking Motor Operation Mode Walk-behind
Wheel Solid Tire/ Beach Tire Forward and Backward Switch Control, CVT
Running Speed 0-40m/min Steering Hydraulic Control
Working Speed 5m/min Fuel Oil Volume 12L
Screed Head Type Rocking type Machine Size(LxWxH)

2860mmX2280mmX

1172mm

Weight 240kg

Laser Screed Concrete for Sale

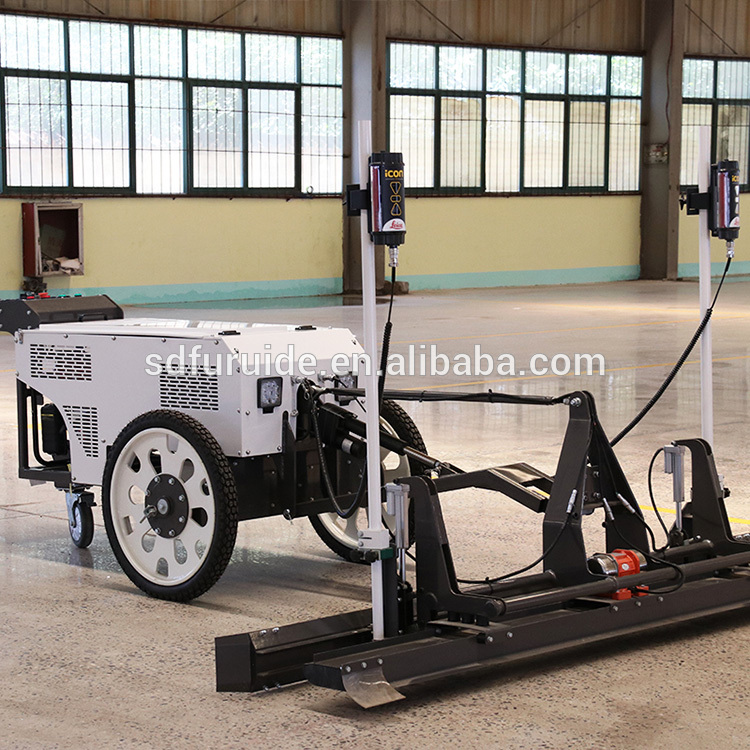

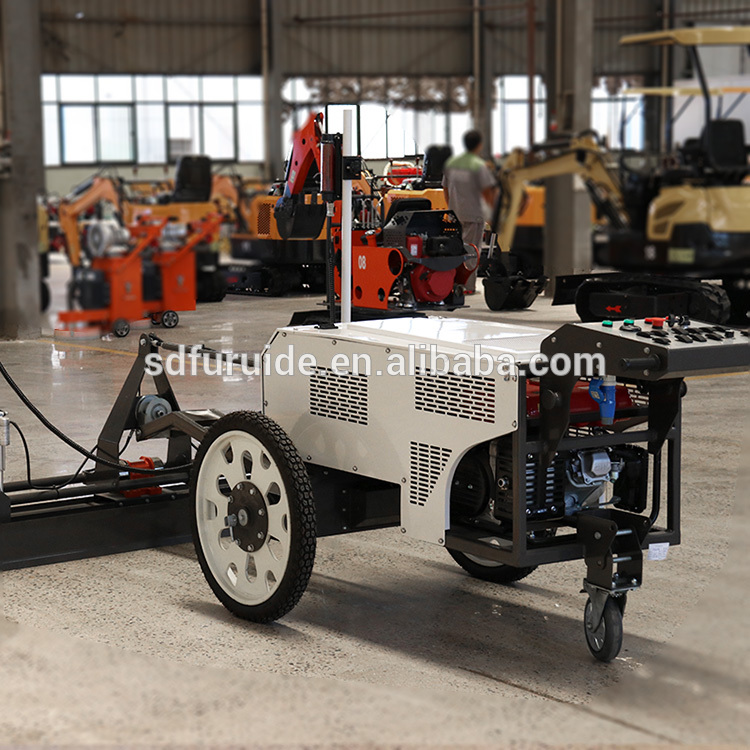

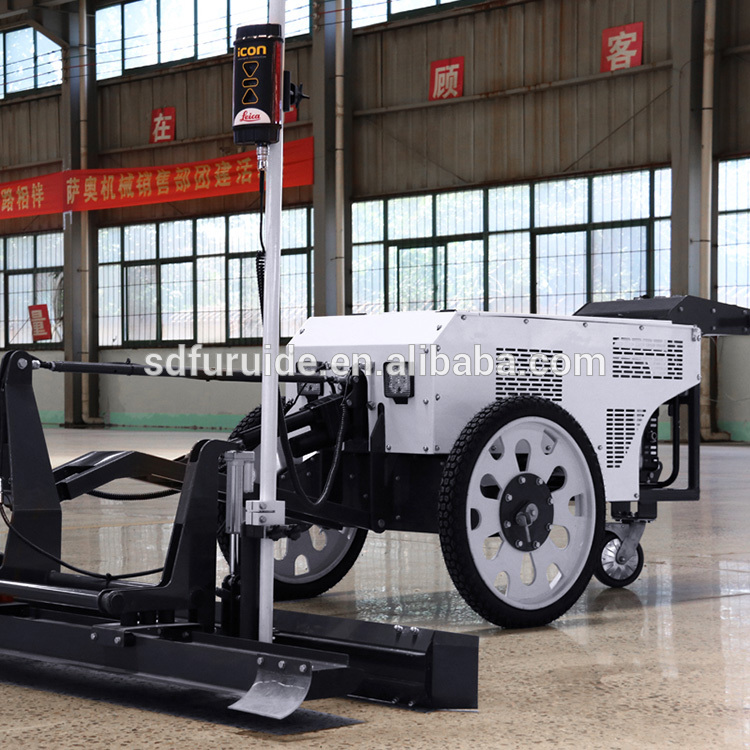

Figure Photos

Concrete Laser Screed Machine

Concrete Laser Screed MachineConcrete Laser Screed MachineConcrete Laser Screed Machine



Laser screed site operation  Concrete Laser Screed Machine



Concrete Laser Screed Machine

Concrete Laser Screed Machine

Related Products

Concrete Laser Screed Machine

Packaging & Shipping

Concrete Laser Screed Machine

Concrete Laser Screed Machine
